Experience Unmatched Connectivity Elevate Your Network with SIM-Enabled 5G Routers.
The Kefi X-54 5G allows users to connect to a 5G network and share the high-speed internet connection with multiple devices in a home or office setting. It acts as a bridge between the 5G network and the local area network (LAN) of the user's premises.
2.6 Gbps
Theoretical Peak Download Speed for 5G
TDD/FDD
Support All 5G Frequency Bands
NSA/SA
Support 5G NSA/SA & 4GWi-Fi Where You Need It
The Kefi X-54 5G allows users to connect to a 5G network and share the high-speed internet connection with multiple devices in a home or office setting. It acts as a bridge between the 5G network and the local area network (LAN) of the user's premises.
Remote Area
Temporary Store
Private Villa
Temporary Events
Easy Setup and
Management
Our intuitive web-based interface empowers you to effortlessly configure and manage your Kefi X-54 5G device settings, ensuring you get the most out of its cutting-edge capabilities.
Easy Setup and
Management
Our intuitive web-based interface empowers you to effortlessly configure and manage your Kefi X-54 5G device settings, ensuring you get the most out of its cutting-edge capabilities.
5G CPE

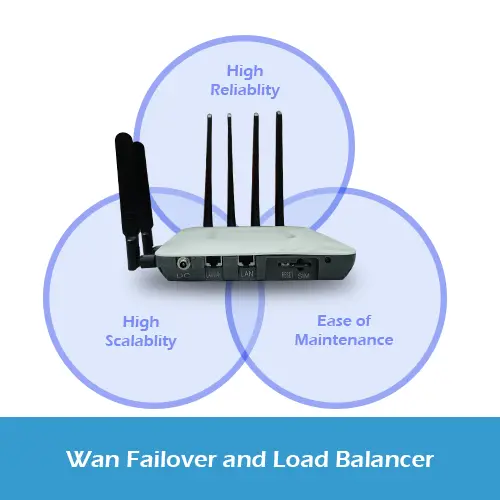

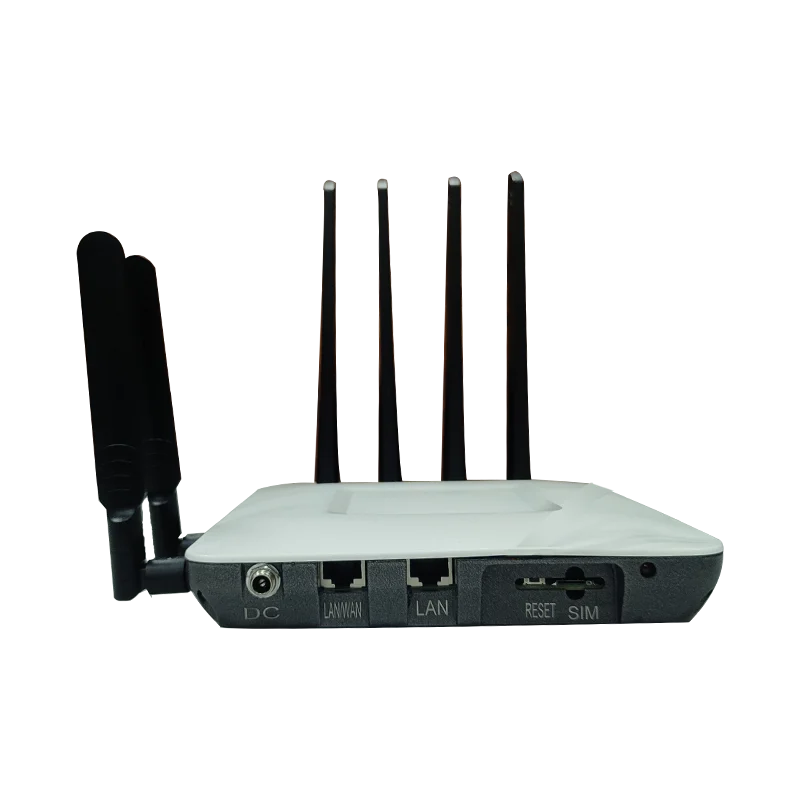

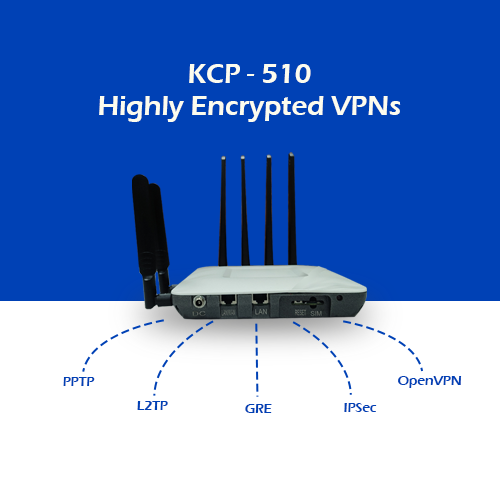

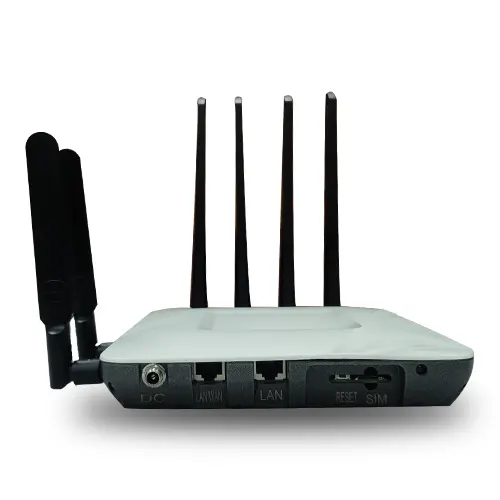

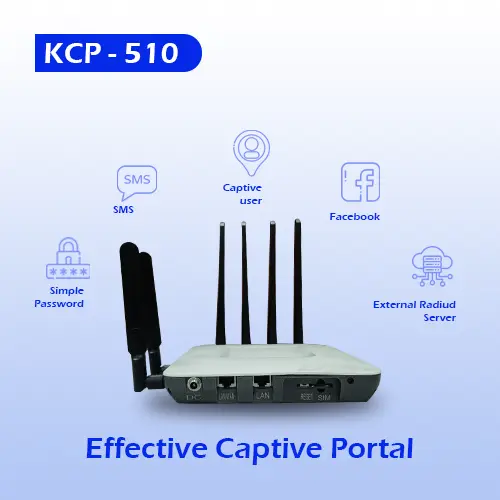

KCP-510 Dual Band Indoor 5G
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 1x 10/100/1000 BASE-T RJ-45 Ethernet Port for versatile connectivity options
Qualcomm® 1GHz Dual-Core CPU combined with ARM Cortex A53 for robust performance.
Back
k110
The KCP-510 is a cutting-edge 5G indoor solution designed for high-speed connectivity and reliable performance. Equipped with dual-band WLAN (2.4GHz & 5GHz) and powerful 26 dBm transmit power, it supports data rates up to 600 Mbps on 2.4 GHz and 4800 Mbps on 5 GHz, ensuring seamless connectivity for multiple devices. The device features four internal 3/5 dBi dual-concurrent omni-directional antennas for optimal signal reception and four 5 dBi wideband antennas for WWAN. Powered by a Qualcomm® 1GHz dual-core CPU and Snapdragon X62 modem, it ensures robust operation. With 512MB RAM and 256MB NAND flash memory, it delivers smooth performance. The KCP-510 supports PoE, surge protection (2KV), and offers a versatile set of operating modes, including AP and Mesh. This efficient device is built to deliver high-performance, stable connectivity for both home and business environments.
- Qualcomm® 1GHz Dual-Core CPU combined with ARM Cortex A53 for robust performance.
- Snapdragon X62 modem for enhanced connectivity.
- 512MB RAM and 256MB NAND FLASH for smooth operation and storage.
- WLAN: Four (4) Internal 3/5 dBi Dual- Concurrent Omni-Directional Antennas for optimal signal reception.
- Four Internal 5dBi Wideband Omni-Directional Antennas ensuring reliable connectivity.
- 1x 10/100/1000/2500 BASE-T RJ-45 Ethernet Port.
- 1x 10/100/1000 BASE-T RJ-45 Ethernet Port for versatile connectivity options.
- Supports 8 SSIDs for both 2.4GHz and 5GHz radios.
- SSID-to-VLAN Tagging for efficient network.
- Supports v1, v2c, and v3 SNMP protocols for comprehensive network monitoring.
- Equipped with 2KV surge protection for enhanced durability.
- Compatible with 802.3af/at or Proprietary 48V source, ensuring energy efficiency. IEEE 802.11e Compliant Source and Active Ethernet (PoE) support.
Multiple BSSID
VLAN Tagging
SNMP
Surge Protection
Power Source
- Implements WPA2 AES-PSK/WPA2 Enterprise security protocols for enhanced data protection.
- Allows monitoring of wireless client connections for network management purposes.
- Airtime fairness, Roaming, Wmm,MFP,HS2.0,Band Steering,Layer2 user isolation, STP, Blacklist/Whitelist of Client.
- 8 SSIDs for both 2.4GHz and 5GHz radios WPA2-PSK, WEP,WPA3(WPA3-OWE,SAE,SAE+PSK,WPA3-SuiteB), WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation.
Wireless Security
Wireless Capabilities
- 8 SSIDs for both 2.4GHz and 5GHz radios.
- Supports 802.1q SSID-to-VLAN Tagging for efficient network management.
- Supports 802.1d Spanning Tree Protocol ensuring network stability.
- Compliant with IEEE 802.11e Standard and Wi-Fi Multimedia (WMM) for superior quality of service.
- Supports v1, v2c, and v3 SNMP protocols for comprehensive network monitoring.
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
- Operating from 4°~140°F/-20°C~60°C
- Operating and storage humidity levels are both 90% or less.
- Operating and storage humidity levels are both 90% or less.
- Weight - 1Kg, Width - 6” (150 mm), Length - 6” (150 mm), Height - 10” (250 mm).
Temperature Range
Humidity
Humidity
Dimensions

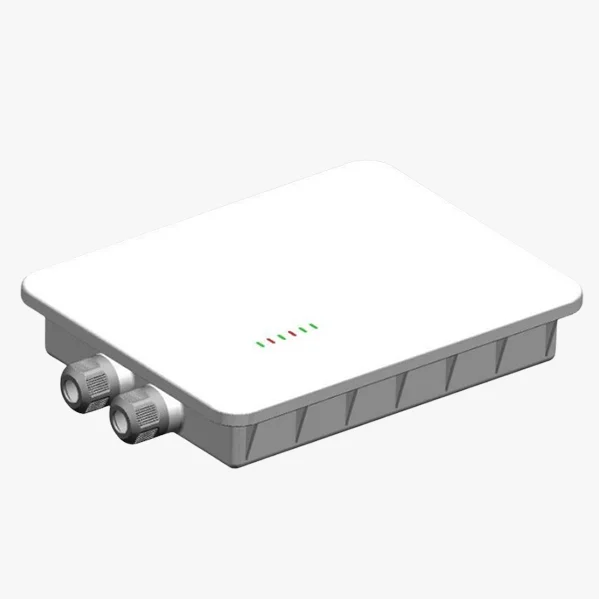

KCP-520 Outdoor 5G CPE
- Qualcomm® 1GHz Dual-Core CPU with ARM Cortex A53 for robust performance.
- Switch effortlessly between Access Point (AP) and Mesh modes.
Outdoor 5G CPE supports NR FDD/TDD, SA/NSA, Sub-6 GHz, spectrum sharing, 4×4 MIMO.
Back
k110
KCP-520 is a high-performance outdoor 5G CPE (Customer Premises Equipment) designed to deliver reliable, high-speed wireless connectivity in demanding outdoor and industrial environments. Powered by advanced 5G NR technology and Qualcomm processing, the device supports both SA and NSA 5G architectures with Sub-6 GHz spectrum and 4×4 MIMO, enabling superior throughput and network efficiency. The device provides download speeds up to 3000 Mbps and upload speeds up to 1800 Mbps, ensuring seamless data transfer for enterprise networks, smart city infrastructure, and broadband deployments. It also integrates dual-band Wi-Fi 6 (802.11ax) with simultaneous 2.4 GHz and 5 GHz operation, delivering high wireless performance with data rates up to 4802 Mbps on 5 GHz and 576 Mbps on 2.4 GHz.
- Qualcomm® advanced technologies, including 5G PowerSave, Signal Boost, Smart Transmit, RF Gaming Mode Boost, and Wideband Envelope Tracking.
- Maximize data rates with support for up to 4802 Mbps on 5 GHz and 576 Mbps on 2.4 GHz. Effortless Management for Peak Performance.
- Ensures network stability with support for 802.1d Spanning Tree Protocol.
- Signal strength (RSSI), Modem Status, IMEI, IMSI, Roaming Status, Operator, Band, PLMN, EARFCN, Preferred Network Type
- Operating temperature from -4o°F to 140°F and storage temperature from -40°F to 176°F.
- 1x 10/100/1000/2500 BASE-T RJ-45 Ethernet Port.
- Supports 802.1q SSID-to-VLAN Tagging and Cross- band VLAN Pass Through for efficient network management.
- Qualcomm® 1 GHz Dual-Core CPU (ARM Cortex-A53).
- 512 MB RAM, 256 MB NAND Flash.
- 5G NR (FDD/TDD), SA & NSA modes.
- Sub-6 GHz with 5G/4G spectrum sharing.
- 4×4 MIMO support for enhanced connectivity.
- LTE Cat 22 DL up to 2500 Mbps, Cat 13 UL up to 316 Mbps
- Download up to 3000 Mbps, Upload up to 1800 Mbps.
- 10/100/1000/2500 BASE-T RJ-45 port
- Power-over-Ethernet (802.3af/at) or Proprietary 48V power source.
Processor
Memory
Cellular Technology
5G Spectrum
MIMO
LTE Support
Peak Speeds
Ethernet Interface
Power Input
- Dual-Band Wi-Fi 6 (IEEE 802.11ax).
- Operates on 2.4 GHz and 5 GHz radios for dual-band connectivity.
- Up to 4802 Mbps on 5 GHz and 576 Mbps on 2.4 GHz.
- Up to 26 dBm transmit power for both 2.4 GHz and 5 GHz bands.
- Omni-Directional antennas for WLAN and Wideband Omni-Directional antennas for WWAN.
- Supports Access Point (AP) and Mesh operating modes.
Wi-Fi Standard
Frequency Bands
Max Data Rate
Transmit Power
Antenna Type
Operating Modes
- Supports 802.1Q SSID-to-VLAN tagging and cross-band VLAN pass-through.
- Supports SNMP v1, v2c and v3 protocols for network monitoring.
- Static routing and dynamic routing including BGP, OSPF v2, RIP v1/v2 and policy-based routing.
- Supports IPSec, OpenVPN, PPTP, L2TP and GRE tunneling.
- IEEE 802.11e compliant with Wi-Fi Multimedia (WMM) for traffic prioritization.
- Supports NAT, IP filtering, MAC filtering, Port filtering, URL filtering and attack defense.
- Web UI, Cloud Management, SNMP and TR-069 for remote management.
VLAN Support
SNMP
Routing
VPN
QoS
Firewall
Management Interface
- IP67 rated waterproof and dustproof outdoor enclosure.
- Supports temperature range from -30°C to 70°C for harsh environments.
- 15KV ESD protection and 4KV lightning protection for outdoor stability.
- 10" × 10" × 3.2" compact outdoor device size.
- Approximately 1.5 Kg rugged industrial design.
Enclosure Rating
Operating Temperature
Lightning Protection
Dimensions
Weight

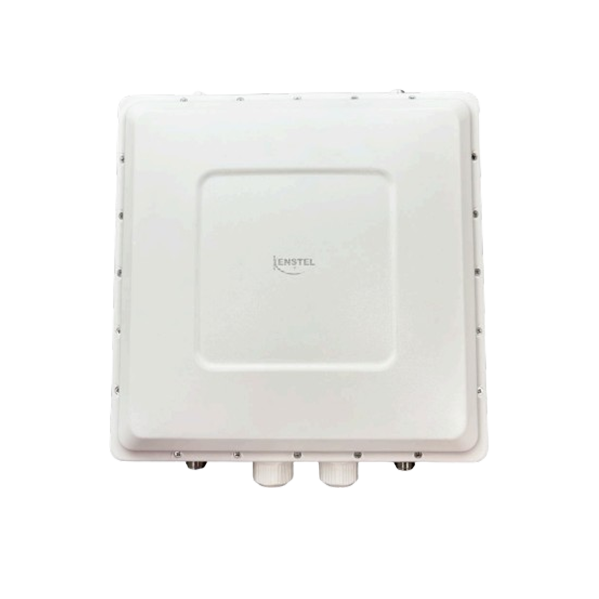

KCP-540 Dual Band Outdoor Wireless
- 5G Peak Download Speed: 7500 Mbit/s.
- 5G sub-6 GHz : 200 MHz bandwidth, 4x4 MIMO.
5G CPE with Dual-band 4x4 MIMO 802.11ax Access Point.
Back
k110
Kenstel KCP-540 is a two- radio, 4x4 MIMO 802.11ax 5G CPE. Designed for general purpose, next-generation deployments in harsh outdoor locations and industrial conditions, the KCP-540 offers performance, enterprise-grade security, and intuitive management. The KCP-540 delivers a maximum 5.4 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KCP-540 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the harshest outdoor environments.
- can be used as ceiling mount, wall mount/desktop device.
- Aggregate data rate of 5.4Gbps.
- Self-configuring, Self-healing mesh.
- Inbuilt external 7dBi Omnidirectional Antennas.
- Configuration file backup and restore by TFTP or FTP, HTML.
- Rich system information –AP status, station status, event logs.
- IEEE 802.11a/b/g/n/ac/ax compliant.
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2/v3
- 5G sub-6 GHz (NSA, SA, NR-CA, DSS supported), 4G LTE Cat 22, 3G HSPA+/UMTS.
- Release 16 compliant.
- 5G 4FF Nano SIM.
- 5G Peak Download: 7500 Mbit/s, 5G Peak Upload: 3000 Mbit/s.
- 4x4 MIMO for both 5G sub-6 GHz and 4G LTE.
- 3 x GE Port (PoE).
- 12V/5A DC Input or PoE.
- 30W.
Cellular Technology
3GPP Compliance
SIM Type
Peak Speeds
Cellular MIMO
Ethernet Interface
Power Source
Max Power Consumption
- Dual-Band 802.11ax (Wi-Fi 6), compliant with 802.11a/b/g/n/ac/ax.
- 2x2 SU/MU-MIMO on 2.4GHz and 4x4 SU/MU-MIMO on 5GHz.
- Aggregate rate of 5.4 Gbps (Up to 4800 Mbps on 5 GHz and 600 Mbps on 2.4 GHz).
- Inbuilt external 7dBi Omnidirectional Antennas; 5dBi gain for WiFi and 2-5dBi gain for Cellular.
- DL/UL-OFDMA, TWT support, BSS Coloring, and Beamforming.
- Bridge Mode and Gateway Mode; supports self-configuring/self-healing mesh.
Wi-Fi Standard
MIMO
Max Data Rate
Antenna Type
Wireless Features
Operating Modes
- Supports 802.1q SSID-to-VLAN Tagging.
- v1, v2c, v3 supported.
- Static routes, RIP v1/v2, OSPF, BGP4, and Policy Based Routing (PBR).
- L2TP V2/V3, GRE/EOGRE, OpenVPN, IPSEC, PPTP, and Wireguard/SSL.
- WMM, 802.1e, Traffic Shaping, Bandwidth Limiting, and Airtime Fairness.
- Port/Mac/IP filtering, ARP spoofing prevention, Rogue AP detection, and WPA3 (Personal/Enterprise).
- Local UI, Cloud Management, SSH, TELNET, and TR069.
VLAN Support
SNMP
Routing
VPN/Tunnels
QoS
Security
Management Interface
- IP68 rated waterproof and dustproof.
- 0°C to +50°C (Storage: -40°C to +70°C).
- 5%~95% non-condensing (Operating and Storage).
- 10" x 10" x 3.2" (250mm x 250mm x 80mm).
- 2.5Kg.
