We introduce our cutting-edge Enterprise WLAN Access Points (APs) designed to provide reliable and secure wireless connectivity for large organizations and enterprises. Our enterprise WLAN APs are specifically engineered to meet the demanding networking needs of businesses, government agencies, educational institutions, and more.
- High-Performance Connectivity.
- Extensive Coverage and Scalability.
- Easy Deployment and Maintenance.
- Quality of Service (QoS) Support.
- Seamless Roaming and Mobility.
- Centralized Management.
Who Needs a WLAN?
Business & Offices
WLAN is a necessity for modern workplaces, enabling employees to access critical information, collaborate on projects, and communicate effectively.
Learn More
Educational Institutions
WLAN is vital for schools, colleges, and universities. It provides internet access to students, teachers, and staff, enabling online research, digital collaboration, and access to educational resources.
Learn More
Healthcare Facilities
WLAN plays a critical role in healthcare settings. It enables healthcare professionals to access patient records, communicate efficiently, and facilitate telemedicine services.
Learn More
Public Places
WLAN is increasingly available in public places like airports, cafes, shopping malls, hotels, and libraries. It allows visitors to connect to the internet conveniently.
Learn More
Transportation and Logistics
WLAN is essential in the logistics industry. It facilitates real-time tracking of vehicles and shipments, improves communication between drivers and dispatchers.
Learn More
Hospitality Industry
Hotels and resorts rely on WLAN to provide internet access to guests, allowing them to stay connected, access entertainment, and use online services.
Learn More
Events and Conferences
WLAN is crucial for events and conferences, providing attendees with internet connectivity for live streaming, social media interaction, real-time updates, and collaborative activities.
Learn More
The WLAN controller provides a centralized interface to manage and configure all the access points in the network. It allows administrators to set up network parameters, security policies, and Quality of Service (QoS) settings from a single location, simplifying network management.
- Dynamic channel and Power Assignment.
- Both Local Controller and Cloud Based.
- Advanced Analytics and Rouge AP detection and Mitigation.
- Support for External captive portal and Radius Server.
- Mesh Support and Secure Guest Network.
- Load Balancing and Traffic Shaping.
Our WLAN Controller Offers
Monitoring and Reporting
Our controllers provide comprehensive monitoring and reporting capabilities.
Load Balancing
Our controllers ensures uninterrupted connectivity and a smooth transition between access points.
Centralized Management
It provides a centralized interface to manage and configure all the access points in the network.
Security and Authentication
WLAN controllers enforce security policies for the wireless network.
AP Configuration and Deployment
Our WLAN controllers facilitates the configuration and deployment of access points.
Roaming and Seamless Connectivity
Our WLAN controllers enable seamless roaming for wireless clients within the network.
Scalability and Flexibility
Our controllers are designed to handle large-scale deployments with hundreds or even thousands of access points.
Kenstel WLAN Portfolio
Wireless Access Point
Our enterprise WLAN APs are specifically engineered to meet the demanding networking needs of businesses, government agencies, educational institutions, and more.

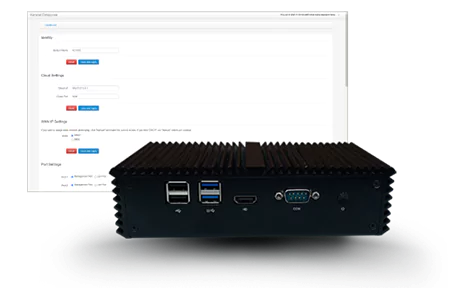

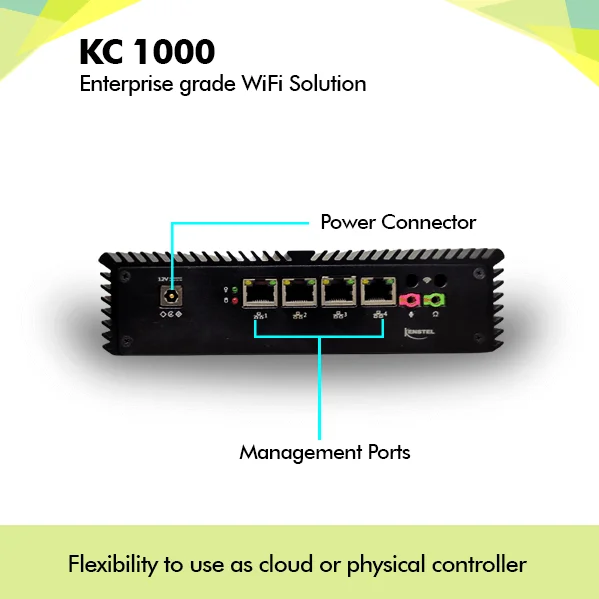

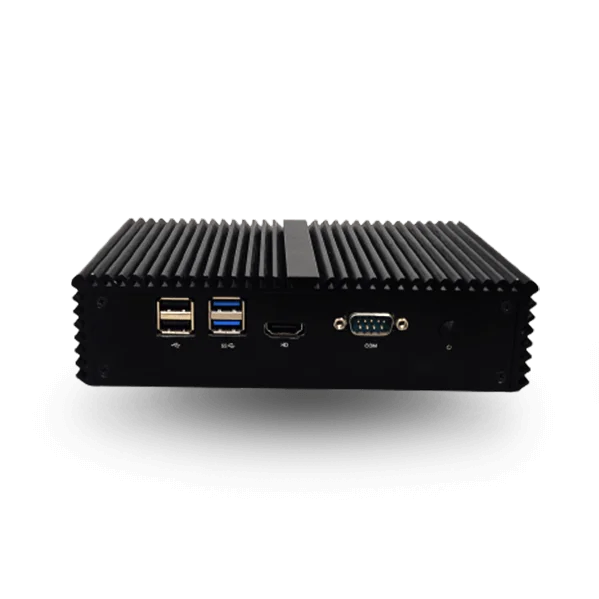

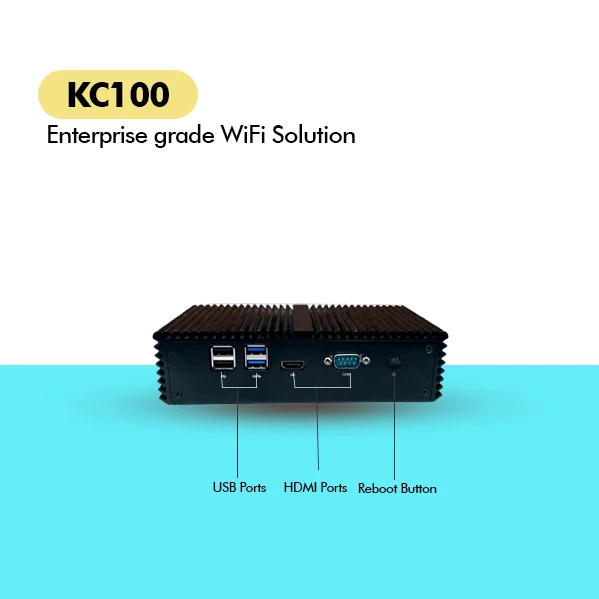

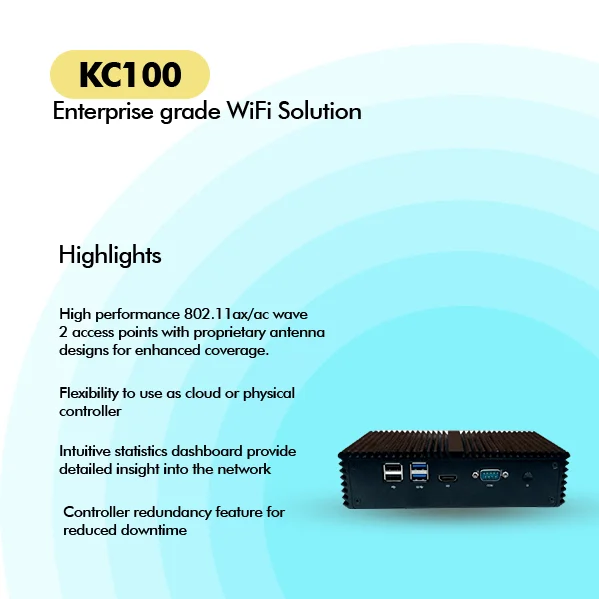

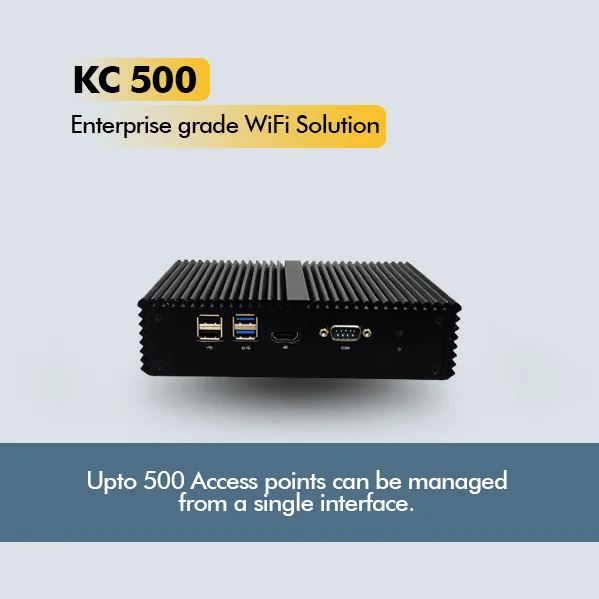

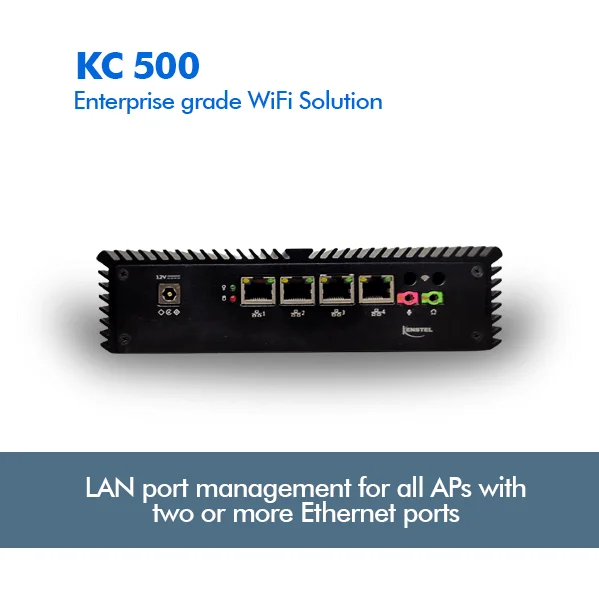

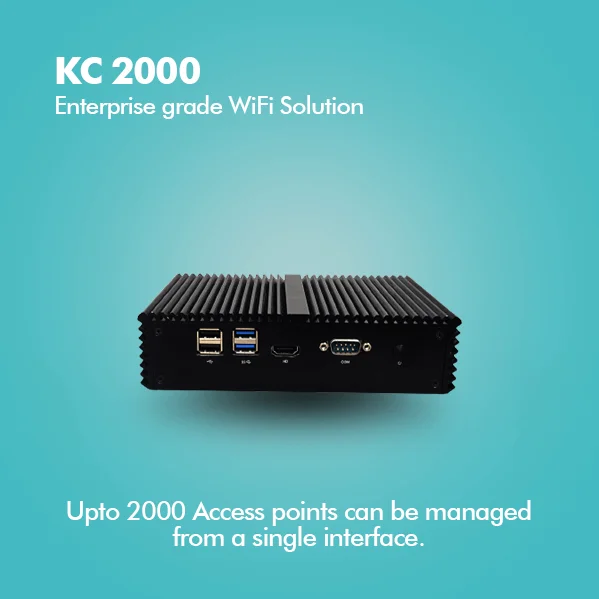

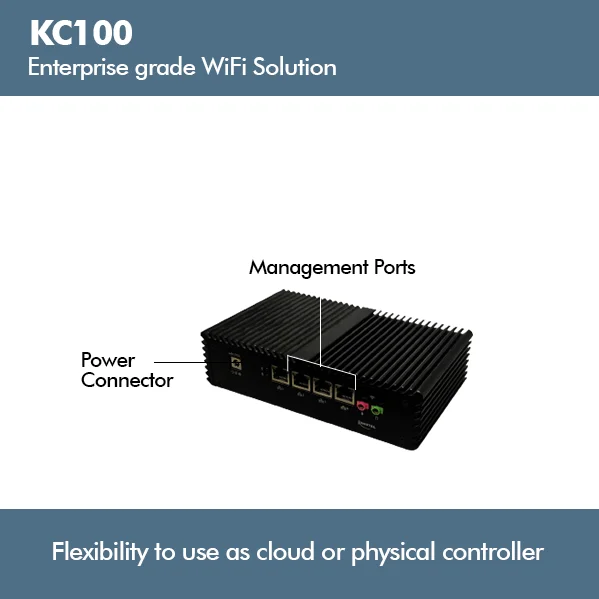

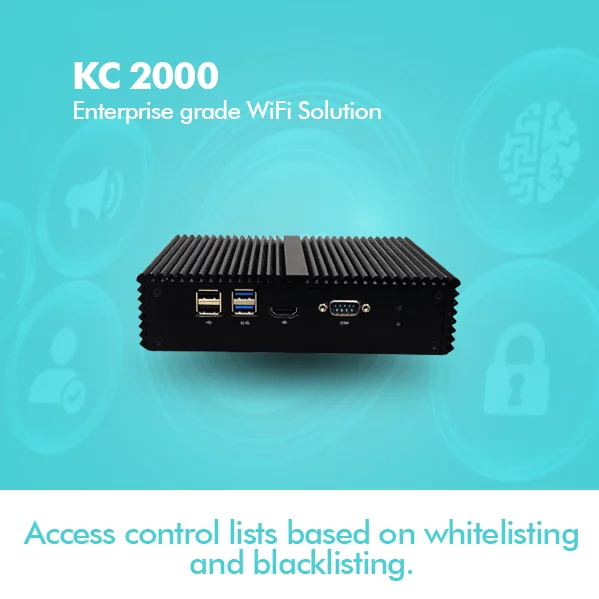

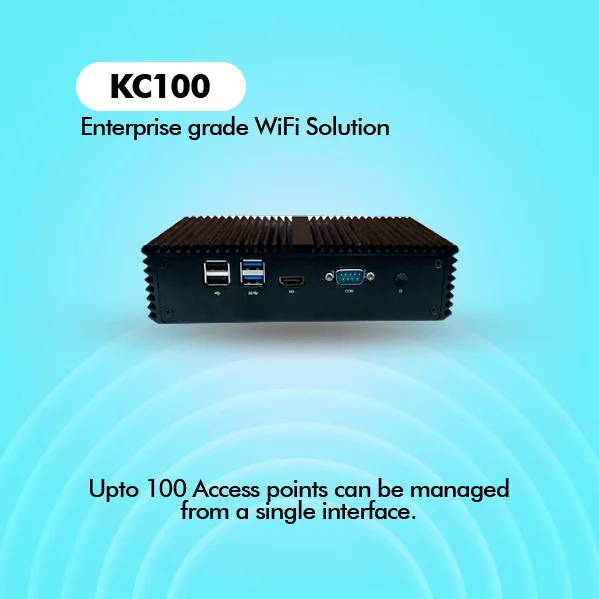

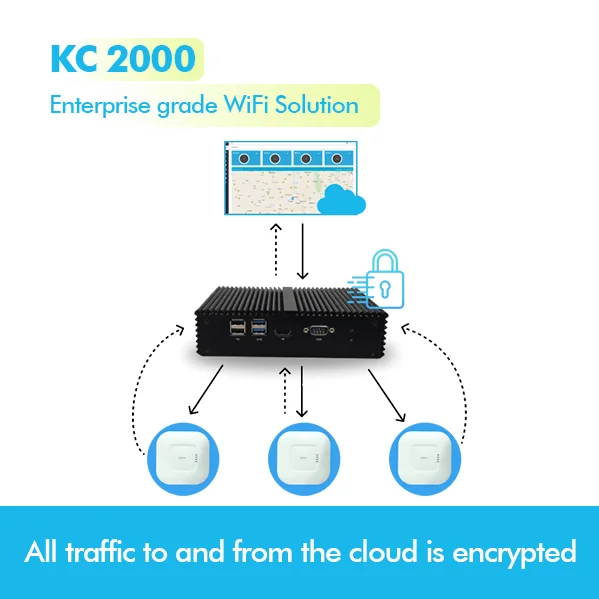

WLAN Controller
It serves as a centralized platform that enables administrators to configure, monitor, and maintain multiple access points (APs) within the network.

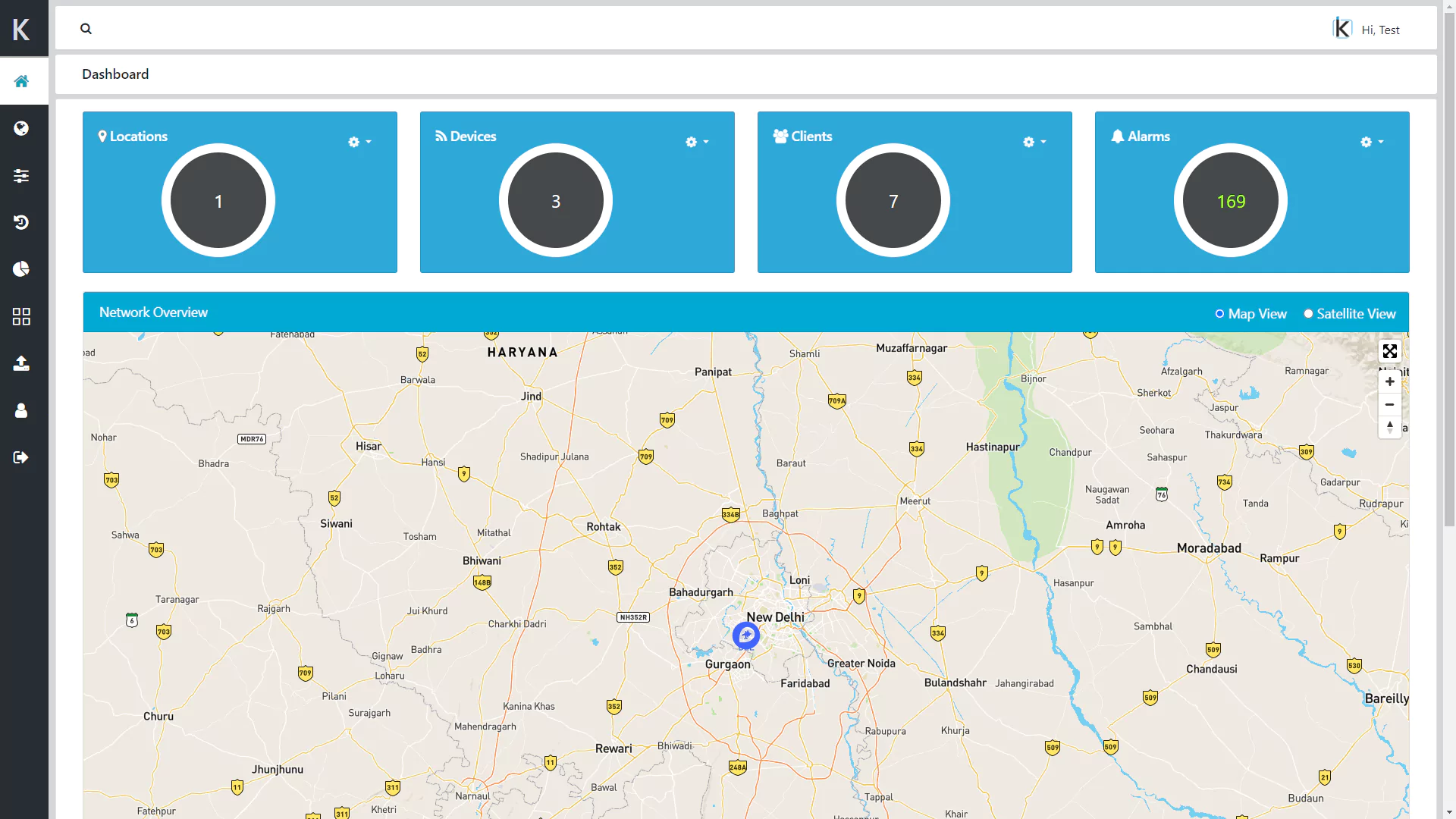

Cloud Manangement
A powerful and intuitive web-based interface that revolutionizes the way you manage and monitor your wireless network infrastructure.
Access Point

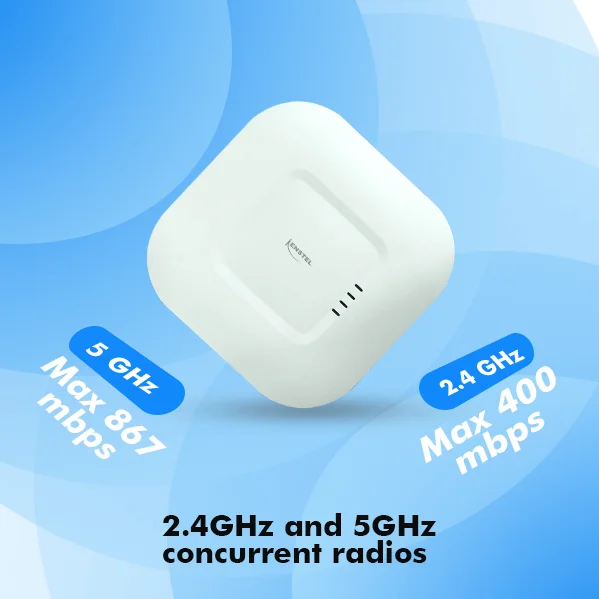

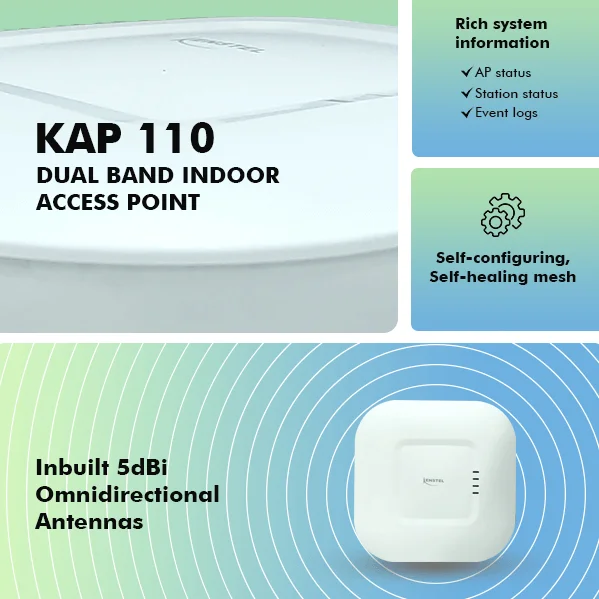

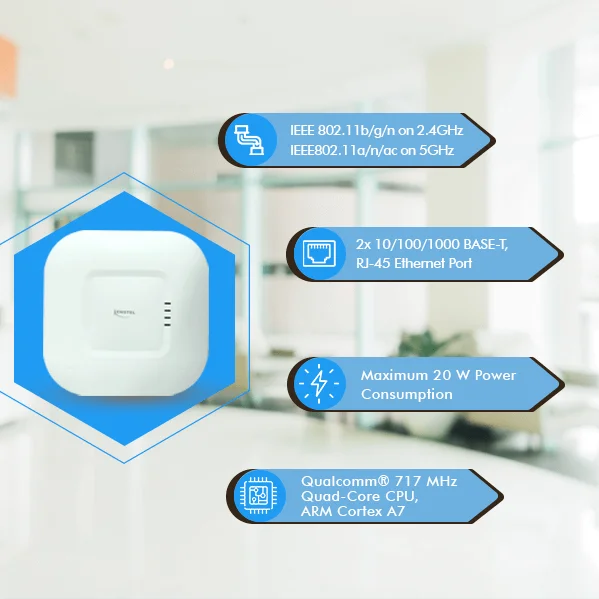

KAP-110 Dual Band Indoor Access Point
- Aggregate data rate of 1.3 Gbps

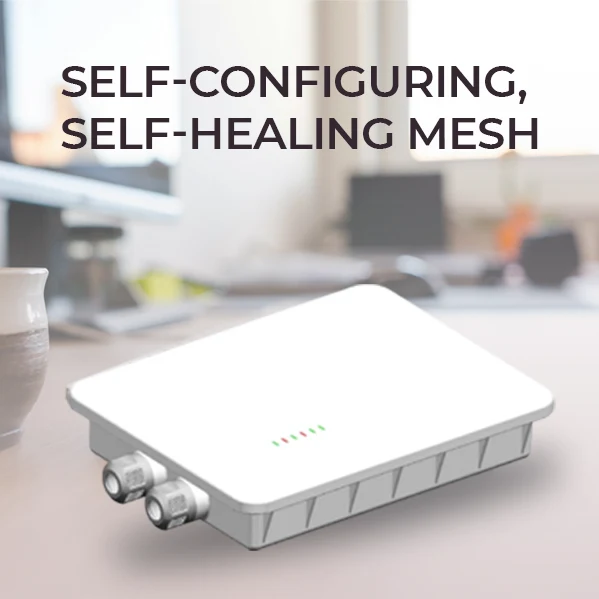

- Self-configuring, Self-healing mesh
- Phy rate of 866Mbps(5Ghz)
Dual-band 2x2 MIMO 802.11ac Wave 2 access point with cloud management
Back
k110
KAP-110 is a two-radio, cloudmanaged 2x2 MIMO 802.11ac Wave 2 access point. Designed for general purpose, next-generation deployments in indoor locations , the KAP110 offers performance, enterprise-grade security, and intuitive management. The KAP-110 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KAP110 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the harshest outdoor environments .

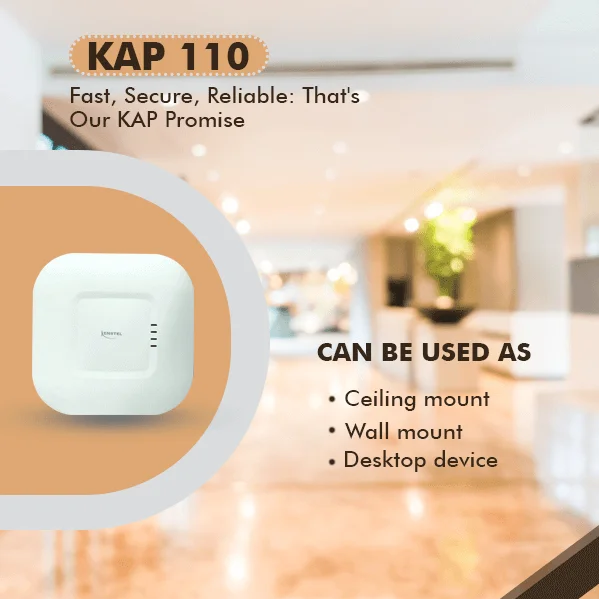

- Can be used as ceiling mount,wall mount/ desktop device
- Aggregate data rate of 1.3 Gbps
- Self-configuring, Self-healing mesh
- Inbuilt 5dBi Omnidirectional Antennas
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2c/v3
- Configuration file backup and restore by TFTP or FTP, HTML
- Rich system information –AP status, station status, event logs
- IPv4 and IPv6 dual stack support
- IEEE 802.11a/b/g/n/ac compliant
- 2.4GHz and 5GHz concurrent radios
- IEEE 802.11b/g/n on 2.4GHz , IEEE802.11a/n/ac on 5GHz
- Qualcomm® 717 MHz Quad-Core CPU | ARM Cortex A7
- Inbuilt 5 dBi omnidirectional antennas
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 1 x Power | 2 x LAN | 1 x 2.4 GHz/ 5 GHz
- Power-over-Ethernet: 802.3af/at or Proprietary 48V
- IEEE 802.11e Compliant Source
- Active Ethernet (PoE)
- 20W
- 2KV
Standards
Processor
Antenna
Physical Interface
LED Indicators
Power Source
Maximum Power Consumption
Surge Protection
- Dual-Radio Concurrent 2.4GHz & 5 GHz
- AP, Mesh
- 2.4GHz: 2400 MHz ~ 2482 MHz
- 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm
- 2x2:2
- 2.4 GHz: Max 400 | 5 GHz: Max 867
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac: 2x2 MIMO with 2 Streams
- 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
- 802.11n supports high throughput (HT)—HT 20/40 MHz
- 802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
- 802.11n/ac packet aggregation: AMPDU, ASPDU
Operating Frequency
Operation Modes
Frequency Radio
Transmit Power
Radio Chains/Spatial Stream
Supported Data Rates (Mbps)
Supported Radio Technologies
Channelization
- 8 SSIDs for both 2.4GHz and 5GHz radios
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-band VLAN Pass Through Management VLAN
- Supports 802.1d Spanning Tree Protocol
- Compliant with IEEE 802.11e Standard | WMM
- v1, v2c, v3 | MIBI/II, Private MIB
- WPA2 AES-PSK/WPA2 Enterprise
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- Https , SSH Client Isolation
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
Wireless Security
- Operating: -4º~140ºF/-20ºC~60ºC
- Storage: -40Fº~176ºF/-40ºC~80ºC
- Operating: 90% or less
- Storage: 90% or less
- IP60-Rated Enclosure

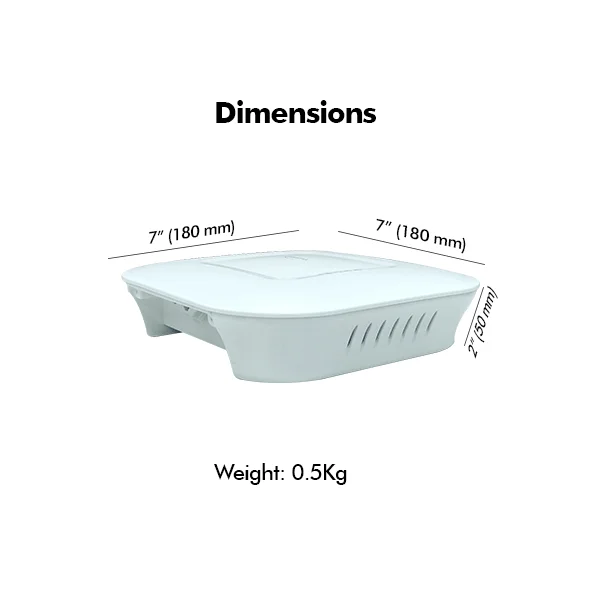

- Weight: 0.5Kg
- Width: 7” (180 mm)
- Length: 7” (180 mm)
- Height” 2” (50 mm)
Temperature Range
Humidity (non-condensing)
Waterproof & Dustproof
Dimensions

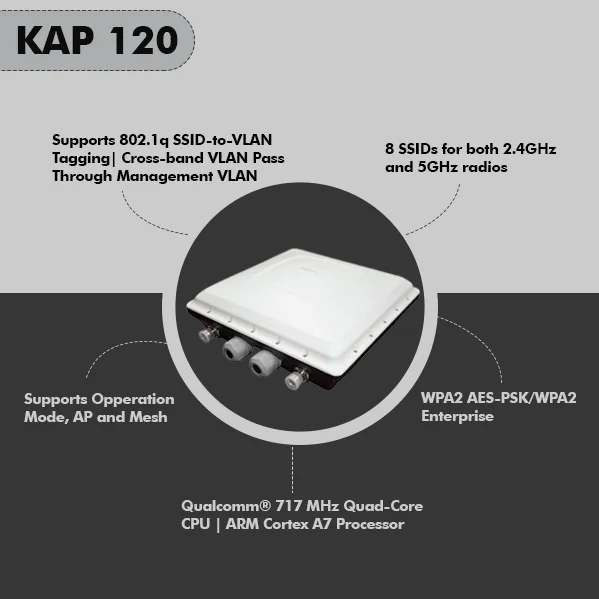

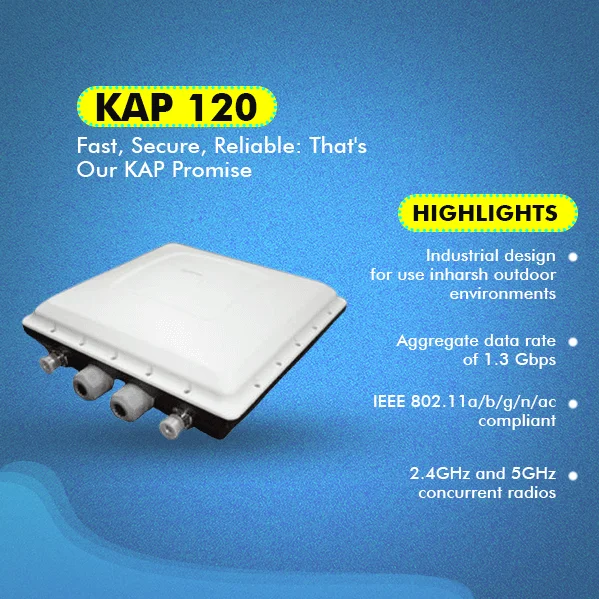

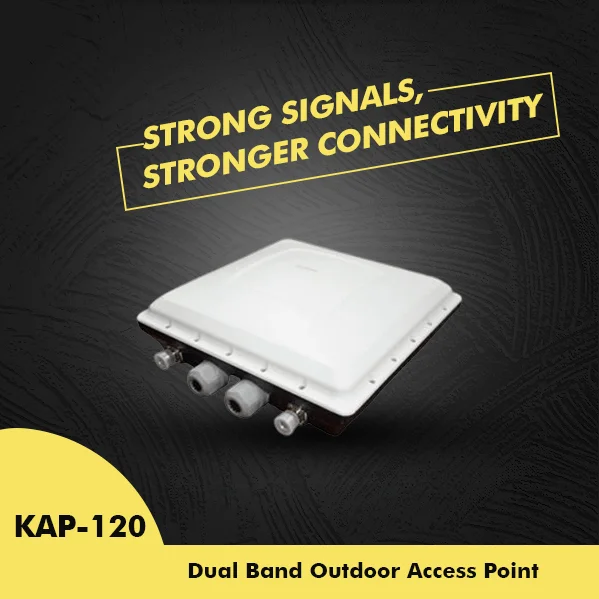

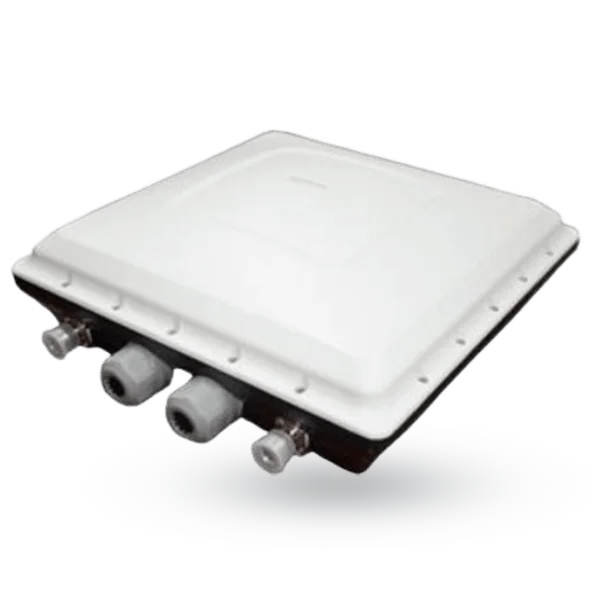

KAP-120 Dual Band Outdoor Access Point
- Qualcomm® 717 MHz Quad-Core CPU
- Option for both inbuilt and external Antennas
- 2.4GHz and 5GHz concurrent radios
Dual-band 2x2 MIMO 802.11ac Wave 2 access point with cloud management
Back
k110
Kenstel KAP-120 is a two-radio, cloud-managed 2x2 MIMO 802.11ac Wave 2 access point. Designed for general purpose, next-generation deployments in harsh outdoor locations and industrial indoor conditions, the KAP120 offers performance, enterprise-grade security, and intuitive management. The KAP-120 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KAP120 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the harshest outdoor environments

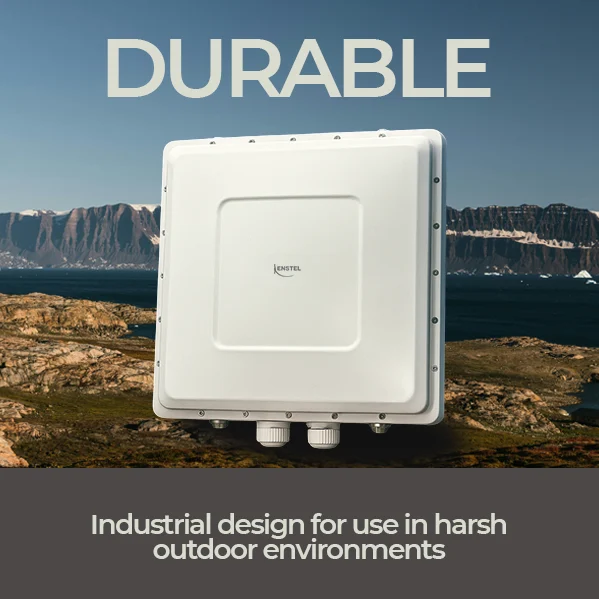

- Industrial design for use in harsh outdoor environments
- Aggregate data rate of 1.3 Gbps
- Self-configuring, Self-healing mesh
- Option for both inbuilt and external Antennas
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2c/v3
- Configuration file backup and restore by TFTP or FTP, HTML
- Rich system information –AP status, station status, event logs
- IPv4 and IPv6 dual stack support
- IEEE 802.11a/b/g/n/ac compliant
- 2.4GHz and 5GHz concurrent radios
- IEEE 802.11b/g/n on 2.4GHz , IEEE802.11a/n/ac on 5GHz
- Qualcomm® 717 MHz Quad-Core CPU | ARM Cortex A7
- Four (4) External 7/9 dBi Dual-Concurrent Omni-Directional Antenna
- N-Type
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz
- Power-over-Ethernet: 802.3af/at or Proprietary 48V
- IEEE 802.11e Compliant Source
- Active Ethernet (PoE)
- 20W
- 2KV
Standards
Processor
Antenna
Physical Interface
LED Indicators
Power Source
Maximum Power Consumption
Surge Protection
- Dual-Radio Concurrent 2.4GHz & 5 GHz
- AP, Mesh
- 2.4GHz: 2400 MHz ~ 2482 MHz
- 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm
- 2x2:2
- 2.4 GHz: Max 400 | 5 GHz: Max 867
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac: 2x2 MIMO with 2 Streams
- Channelization
Operating Frequency
Operation Modes
Frequency Radio
Transmit Power
Radio Chains/Spatial Stream
Supported Data Rates (Mbps)
Supported Radio Technologies
- 8 SSIDs for both 2.4GHz and 5GHz radios
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-band VLAN Pass Through Management VLAN
- Supports 802.1d Spanning Tree Protocol
- Compliant with IEEE 802.11e Standard | WMM
- v1, v2c, v3 | MIBI/II, Private MIB
- WPA2 AES-PSK/WPA2 Enterprise
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- Https ,SSH, Client Isolation
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
Wireless Security
- Operating: -4º~140ºF/-20ºC~60ºC
- Storage: -40Fº~176ºF/-40ºC~80ºC
- Operating: 90% or less
- Storage: 90% or less
- IP67-Rated Enclosure

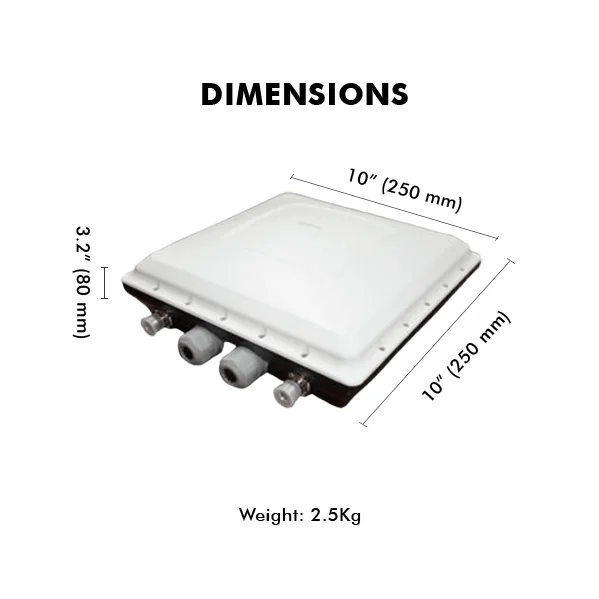

- Weight: 2.5Kg | Width: 10” (250 mm)| Length: 10” (250 mm)| Height” 3.2” (80 mm)
Temperature Range
Humidity (non-condensing)
Waterproof & Dustproof
Dimensions

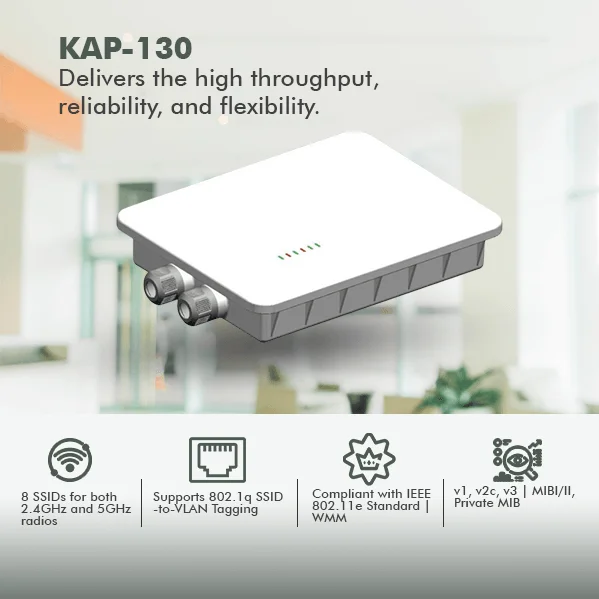

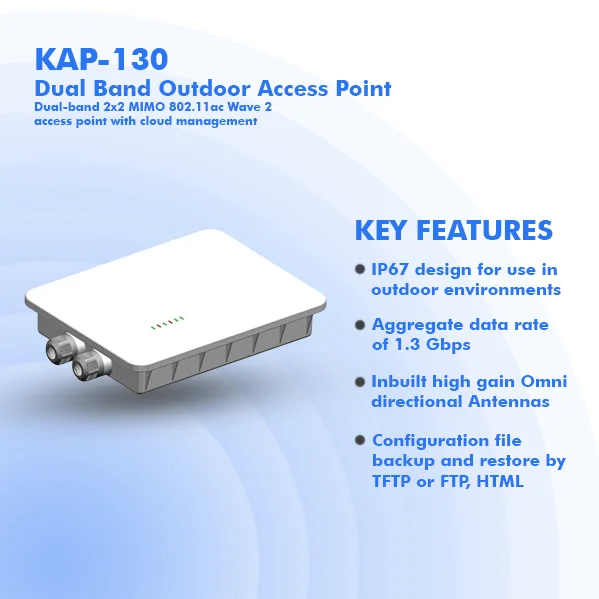

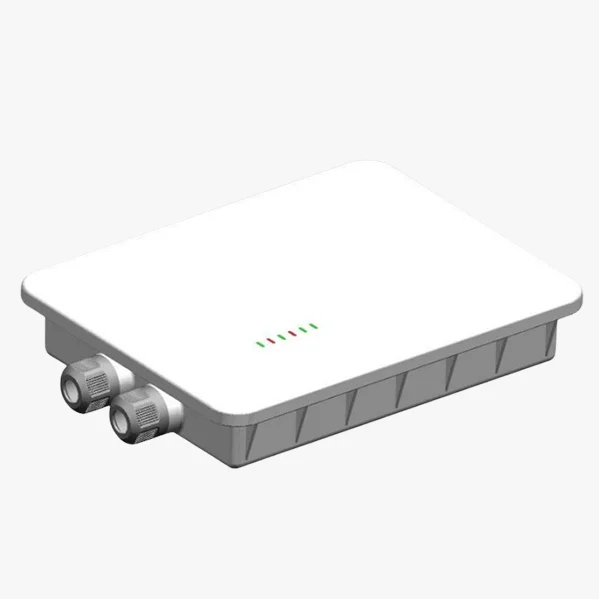

KAP-130 Dual Band Outdoor Access Point
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 2KV Surge Protection
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm Transmit power
Dual-band 2x2 MIMO 802.11ac Wave 2 access point with cloud management
Back
k110
Kenstel KAP-130 is a two-radio, cloud-managed 2x2 MIMO 802.11ac Wave 2 access point. Designed for general purpose, next-generation deployments in outdoor locations and industrial indoor conditions, the KAP130 offers performance, enterprise-grade security, and intuitive management. The KAP-130 delivers a maximum 1.3 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KAP130 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the harshest outdoor environments.
- IP67 design for use in outdoor environments
- Aggregate data rate of 1.3 Gbps
- Self-configuring, Self-healing mesh
- Inbuilt high gain Omni directional Antennas
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2c/v3
- Configuration file backup and restore by TFTP or FTP, HTML
- Rich system information –AP status, station status, event logs
- IPv4 and IPv6 dual stack support
- IEEE 802.11a/b/g/n/ac compliant
- 2.4GHz and 5GHz concurrent radios
- IEEE 802.11b/g/n on 2.4GHz , IEEE802.11a/n/ac on 5GHz
- Qualcomm® 717 MHz Quad-Core CPU | ARM Cortex A7
- Inbuilt 5/7 dBi Dual-Concurrent Omni-Directional Antennas
- N-Type
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz
- Power-over-Ethernet: 802.3af/at or Proprietary 48V
- IEEE 802.11e Compliant Source
- Active Ethernet (PoE)
- 20W
- 2KV
Standards
Processor
Antenna
Physical Interface
LED Indicators
Power Source
Maximum Power Consumption
Surge Protection
- Dual-Radio Concurrent 2.4GHz & 5 GHz
- AP, Mesh
- 2.4GHz: 2400 MHz ~ 2482 MHz
- 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm
- 2x2:2
- 2.4 GHz: Max 400 | 5 GHz: Max 867
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac: 2x2 MIMO with 2 Streams
- Channelization
Operating Frequency
Operation Modes
Frequency Radio
Transmit Power
Radio Chains/Spatial Stream
Supported Data Rates (Mbps)
Supported Radio Technologies
- 8 SSIDs for both 2.4GHz and 5GHz radios
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-band VLAN Pass Through Management VLAN
- Supports 802.1d Spanning Tree Protocol
- Compliant with IEEE 802.11e Standard | WMM
- v1, v2c, v3 | MIBI/II, Private MIB
- WPA2 AES-PSK/WPA2 Enterprise
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- Https ,SSH, Client Isolation
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
Wireless Security
- Operating: -4º~140ºF/-20ºC~60ºC
- Storage: -40Fº~176ºF/-40ºC~80ºC
- Operating: 90% or less
- Storage: 90% or less
- IP67-Rated Enclosure
- Weight: 1Kg | Width: 11” (270 mm)| Length: 9” (220 mm)| Height” 2” (50 mm)
Temperature Range
Humidity (non-condensing)
Waterproof & Dustproof
Dimensions

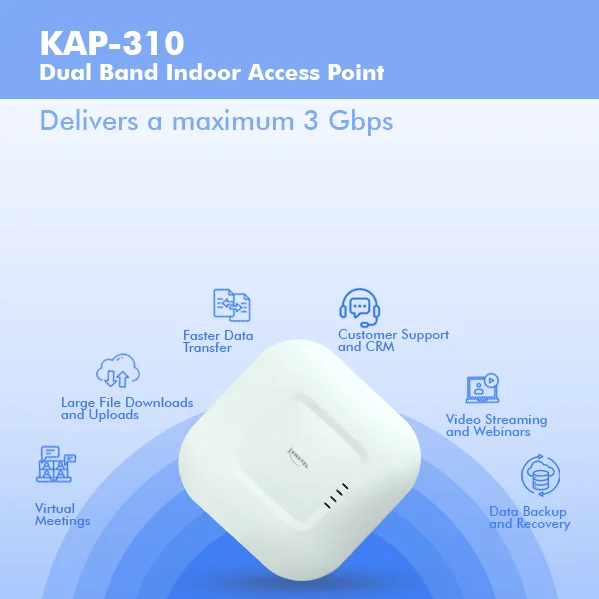

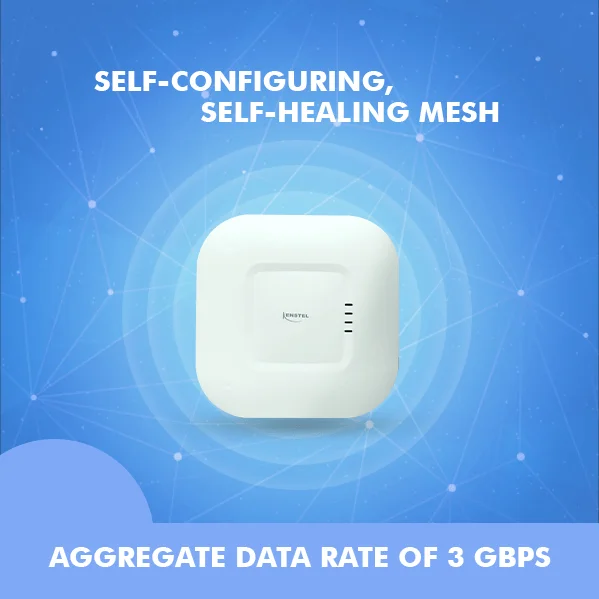

KAP-310 Dual Band Indoor Access Point
- Aggregate data rate of 3 Gbps
- 1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz Led Indicator
- Maximum Power Consumption - 20W
Dual-band 2x2 MIMO 802.11ax/ac Wave 2 access point with cloud management
Back
k110
KAP-310 is a two-radio, cloudmanaged 2x2 MIMO 802.11ax/ac Wave 2 access point. Designed for general purpose, nextgeneration deployments in indoor locations , the KAP310 offers performance, enterprise-grade security, and intuitive management. The KAP-310 delivers a maximum 3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KAP310 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the harshest outdoor environments.

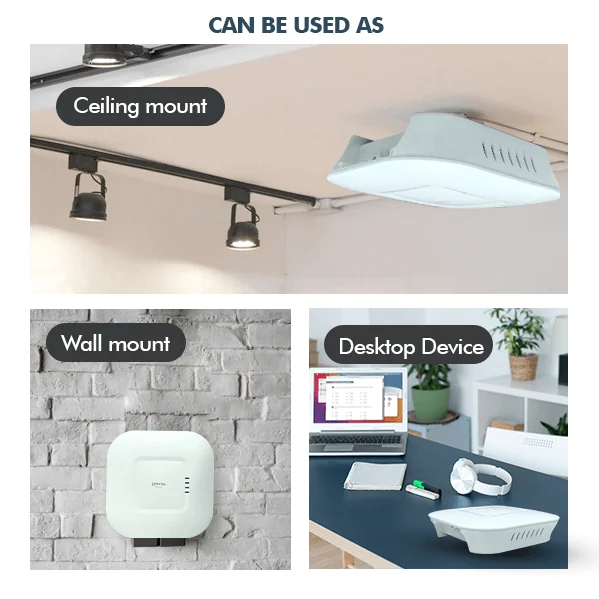

- Can be used as ceiling mount,wall mount/ desktop device
- Aggregate data rate of 3 Gbps
- Self-configuring, Self-healing mesh
- Inbuilt 5dBi Omnidirectional Antennas
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2c/v3
- Configuration file backup and restore by TFTP or FTP, HTML
- Rich system information –AP status, station status, event logs
- IPv4 and IPv6 dual stack support
- IEEE 802.11a/b/g/n/ac/ax compliant
- 2.4GHz and 5GHz concurrent radios
- IEEE 802.11b/g/n/ax on 2.4GHz , IEEE802.11a/n/ac/ax on 5GHz
- Qualcomm® 1Ghz Quad-Core CPU with dedicated NSS
- Inbuilt 5 dBi omnidirectional antennas
- N-Type
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz
- Power-over-Ethernet: 802.3af/at or Proprietary 48V
- IEEE 802.11e Compliant Source
- Active Ethernet (PoE)
- 20W
- 2KV
Standards
Processor
Antenna
Physical Interface
LED Indicators
Power Source
Maximum Power Consumption
Surge Protection
- Dual-Radio Concurrent 2.4GHz & 5 GHz
- AP, Mesh
- 2.4GHz: 2400 MHz ~ 2482 MHz
- 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm
- 2x2:2
- 2.4 GHz: Max 600 | 5 GHz: Max 2400
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac: 2x2 MIMO with 2 Streams
- Channelization
Operating Frequency
Operation Modes
Frequency Radio
Transmit Power
Radio Chains/Spatial Stream
Supported Data Rates (Mbps)
Supported Radio Technologies
- 8 SSIDs for both 2.4GHz and 5GHz radios
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-band VLAN Pass Through Management VLAN
- Supports 802.1d Spanning Tree Protocol
- Compliant with IEEE 802.11e Standard | WMM
- v1, v2c, v3 | MIBI/II, Private MIB
- WPA2 AES-PSK/WPA2 Enterprise
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- Https ,SSH, Client Isolation
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
Wireless Security
- Operating: -4º~140ºF/-20ºC~60ºC
- Storage: -40Fº~176ºF/-40ºC~80ºC
- Operating: 90% or less
- Storage: 90% or less
- IP60-Rated Enclosur
- Weight: 0.5Kg | Width: 7” (180 mm)| Length: 7” (180 mm)| Height” 2” (50 mm)
Temperature Range
Humidity (non-condensing)
Waterproof & Dustproof
Dimensions

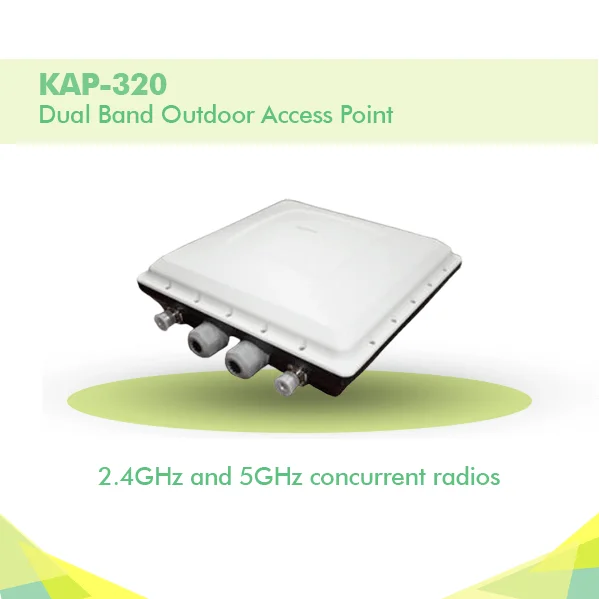

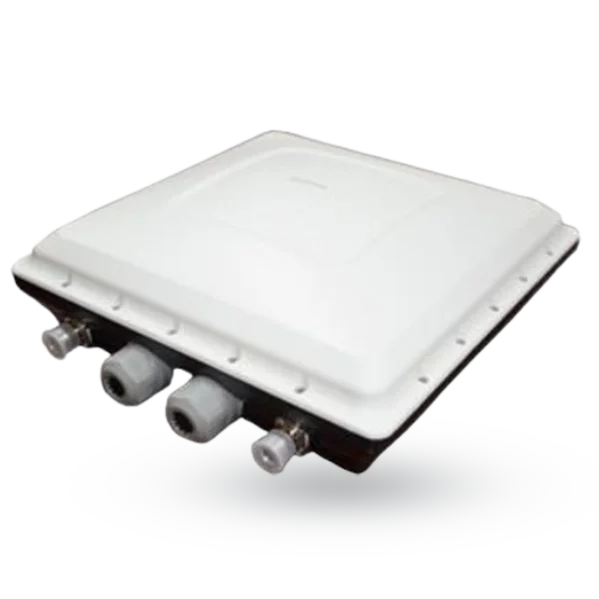

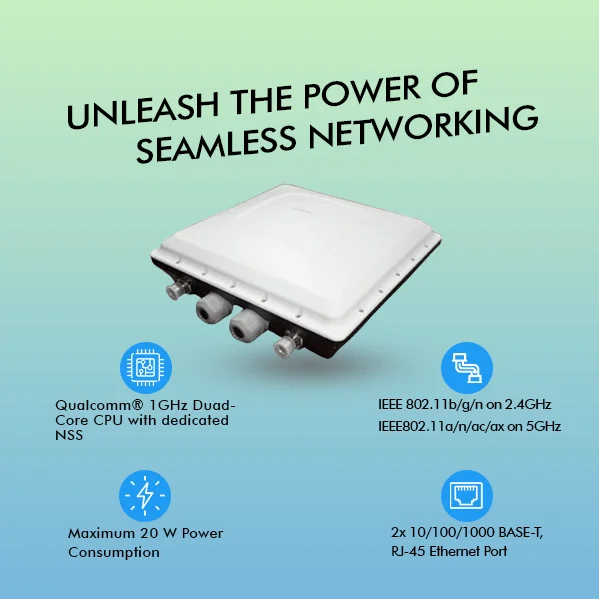

KAP-320 Dual Band Outdoor Access Point
- Self-healing mesh
- IEEE 802.11a/b/g/n/ac/ax compliant
- Configuration file backup and restore by TFTP or FTP, HTML)
Dual-band 2x2 MIMO 802.11 ax/ac Wave 2 access point with cloud management
Back
k110
KAP-320 is a two-radio, cloudmanaged 2x2 MIMO 802.11ax/ac Wave 2 access point. Designed for general purpose, nextgeneration deployments in harsh outdoor locations and industrial indoor conditions, the KAP320 offers performance, enterprise-grade security, and intuitive management. The KAP-320 delivers a maximum 3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KAP320 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the harshest outdoor environments.
- Industrial design for use in harsh outdoor environments
- Aggregate data rate of 3 Gbps
- Self-configuring, Self-healing mesh
- Option for both inbuilt and external Antennas
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2c/v3
- Configuration file backup and restore by TFTP or FTP, HTML
- Rich system information –AP status, station status, event logs
- IPv4 and IPv6 dual stack support
- IEEE 802.11a/b/g/n/ac/ax compliant
- 2.4GHz and 5GHz concurrent radios
- IEEE 802.11b/g/n on 2.4GHz | IEEE802.11a/n/ac/ax on 5GHz
- Qualcomm® 1GHz Duad-Core CPU with dedicated NSS
- Four (4) External 7/9 dBi Dual-Concurrent Omni-Directional Antenna| N-Type
- 2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
- 1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz
- Power-over-Ethernet: 802.3af/at or Proprietary 48V
- IEEE 802.11e Compliant Source
- Active Ethernet (PoE)
- 20W
- 2KV
Standards
Processor
Antenna
Physical Interface
LED Indicators
Power Source
Maximum Power Consumption
Surge Protection
- Dual-Radio Concurrent 2.4GHz & 5 GHz
- AP, Mesh
- 2.4GHz: 2400 MHz ~ 2482 MHz
- 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm
- 2x2:2
- 2.4 GHz: Max 600 | 5 GHz: Max 2400
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac: 2x2 MIMO with 2 Streams
- Channelization
Operating Frequency
Operation Modes
Frequency Radio
Transmit Power
Radio Chains/Spatial Stream
Supported Data Rates (Mbps)
Supported Radio Technologies
- 8 SSIDs for both 2.4GHz and 5GHz radios
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-band VLAN Pass Through Management VLAN
- Supports 802.1d Spanning Tree Protocol
- Compliant with IEEE 802.11e Standard | WMM
- v1, v2c, v3 | MIBI/II, Private MIB
- WPA2 AES-PSK/WPA2 Enterprise
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- Https ,SSH, Client Isolation
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
Wireless Security
- Operating: -4º~140ºF/-20ºC~60ºC
- Storage: -40Fº~176ºF/-40ºC~80ºC
- Operating: 90% or less
- Storage: 90% or less
- IP67-Rated Enclosure
- Weight: 2.5Kg | Width: 10” (250 mm)| Length: 10” (250 mm)| Height” 3.2” (80 mm)
Temperature Range
Humidity (non-condensing)
Waterproof & Dustproof
Dimensions

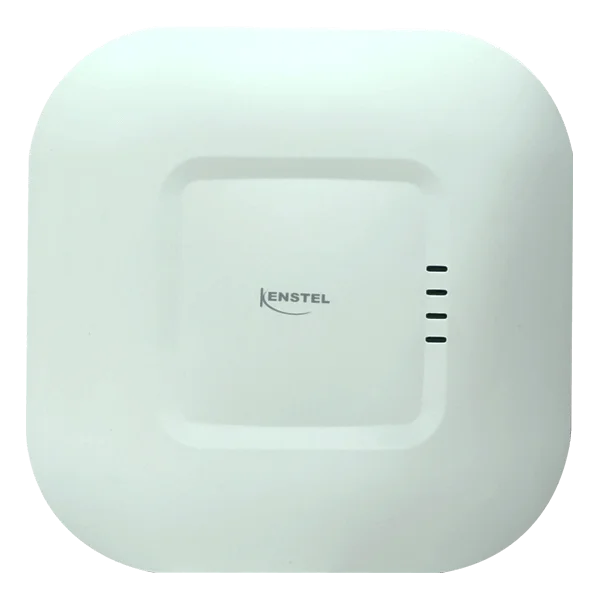

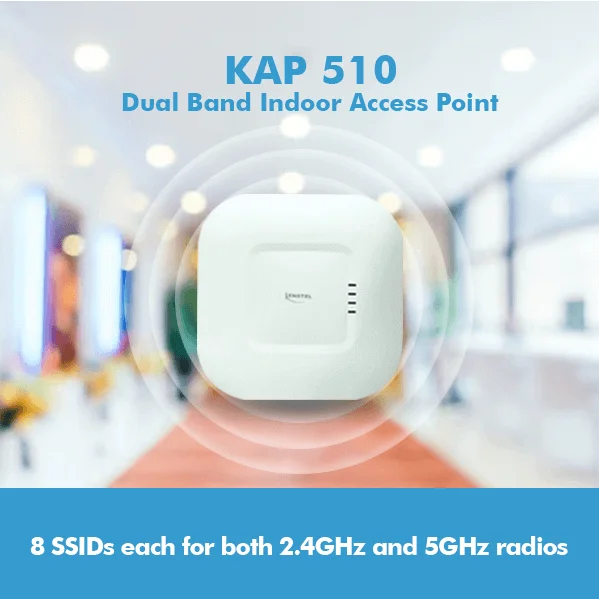

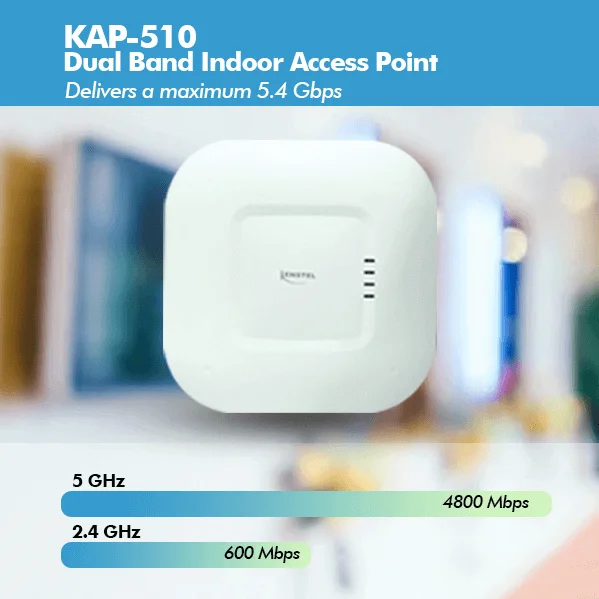

KAP-510 Dual Band Indoor Access Point
- 802.11ax
- 8x8:8 MUMIMO
- Max Phy rate of 4800Mbps (5Ghz) and 1200Mbps (2.4Ghz)

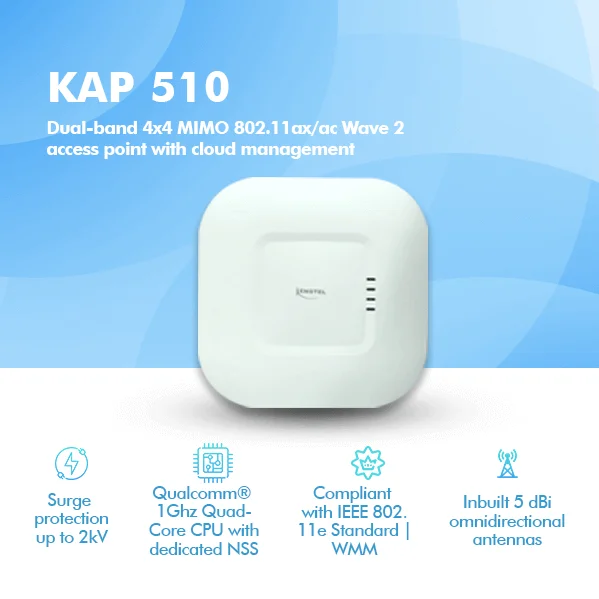

Dual-band 4x4 MIMO 802.11ax/ac Wave 2 access point with cloud management
Back
k110
KAP-510 is a two-radio, cloud- managed 4x4 MIMO 802.11ax/ac Wave 2 access point. Designed for general purpose, next- generation deployments in indoor locations , the KAP510 offers performance, enterprise-grade security, and intuitive management. The KAP-510 delivers a maximum 5.4 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. KAP510 delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video.
- Can be used as ceiling mount,wall mount/ desktop device
- Aggregate data rate of 5.4 Gbps
- Self-configuring, Self-healing mesh
- Inbuilt 5dBi Omnidirectional Antennas
- Remote management via HTTP, HTTPs, Secure SSH, Telnet, SSL, SNMP management v1/v2c/v3
- Configuration file backup and restore by TFTP or FTP, HTML
- Rich system information –AP status, station status, event logs
- IPv4 and IPv6 dual stack support
- IEEE 802.11a/b/g/n/ac/ax compliant
- 2.4GHz and 5GHz concurrent radios
- IEEE 802.11b/g/n/ax on 2.4GHz | IEEE802.11a/n/ac/ax on 5GHz
- Qualcomm® 1Ghz Quad-Core CPU with dedicated NSS
- Inbuilt 5 dBi omnidirectional antennas
- 1x 10/100/1000/2500 BASE-T, 1x 10/100/1000 BASE-T RJ-45 Ethernet Port
- 1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz
- Power-over-Ethernet: 802.3af/at or Proprietary 48V
- IEEE 802.11e Compliant Source
- Active Ethernet (PoE)
- 20W
- 2KV
Standards
Processor
Antenna
Physical Interface
LED Indicators
Power Source
Maximum Power Consumption
Surge Protection
- Dual-Radio Concurrent 2.4GHz & 5 GHz
- AP, Mesh
- 2.4GHz: 2400 MHz ~ 2482 MHz
- 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
- 2.4 GHz: 26 dBm | 5 GHz: 26 dBm
- 4x4:4 on 5GHz , 2x2:2 on 2.4GHz
- 2.4 GHz: Max 600 | 5 GHz: Max 4800
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac/ax: 4x4 MIMO with 2 Streams
- Channelization
Operating Frequency
Operation Modes
Frequency Radio
Transmit Power
Radio Chains/Spatial Stream
Supported Data Rates (Mbps)
Supported Radio Technologies
- 8 SSIDs for both 2.4GHz and 5GHz radios
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-band VLAN Pass Through Management VLAN
- Supports 802.1d Spanning Tree Protocol
- Compliant with IEEE 802.11e Standard | WMM
- v1, v2c, v3 | MIBI/II, Private MIB
- WPA2 AES-PSK/WPA2 Enterprise
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- Https ,SSH, Client Isolation
Multiple BSSID
VLAN Tagging
Spanning Tree
QoS (Quality of Service)
SNMP
Wireless Security
- Operating: -4º~140ºF/-20ºC~60ºC
- Storage: -40Fº~176ºF/-40ºC~80ºC
- Operating: 90% or less
- Storage: 90% or less
- IP60-Rated Enclosure
- Weight: 0.5Kg | Width: 7” (180 mm)| Length: 7” (180 mm)| Height” 2” (50 mm)
Temperature Range
Humidity (non-condensing)
Waterproof & Dustproof
Dimensions
Controller
KC100
- IEEE 802.11ac Wave 2/ax support
- Dynamic channel and Power Assignment
- Centralized forwarding with DTLS encryption
WiFi Network Controller for small to medium businesses that supports upto 100 Access Points
Back
k110
WiFi Network Controller for small to medium businesses that supports upto 100 access points Kenstel’s controller is ideal for areas with high density traffic and is easy to set up as well. Easily deployable by even non-wireless experts and at affordable prices. KC100 was built for enterprises that have access points up to 100 so as to bridge the gap between the complex enterprise systems and the standalone APs that are simple but do not offer a lot of features to companies. With KC100, the customers do not have to worry on managing the network and can focus on boosting their performance and profits!.
- Innovative hybrid technology enables management of multiple controllers from a central dashboard. Upto 100 Access points can be managed from a single interface.
- Zero touch deployment and configuration
- 802.11ax/ac wave 2 access points with proprietary antenna designs for enhanced coverage.
- Industry leading combination of price and performance. Reduce TCO by at least 30%.
- Flexibility to use as cloud or physical controller
- Zero recurring cost
- Intuitive statistics dashboard provides detailed insight into the network
- 3rd Party API Integration for analytics
- Controller redundancy feature for reduced downtime
- Management of a wide range of indoor and outdoor Kenstel APs, including the latest Wi-Fi 6 (802.11ax) as well as 802.11ac Wave 2 APs
- Radio resource management for dynamic control of TX power and channels
- Upto 8 SSID per radio
- Coverage hole detection and mitigation
- Airtime fairness
- Automatic load balancing (between APs and radios)
- Self-configuring, self-healing mesh networking
Standard
Wireless performance
Network Flexibility
Wireless Intelligence
- Ability to select RF policies, WLAN types (PSK, 802.1X, Captive Portal), guest access options, QoS and VLANs
- Flexibility to segment APs within a venue into different AP groups
- Channel and power control per venue, per AP group and per AP
- Bulk firmware upgrades

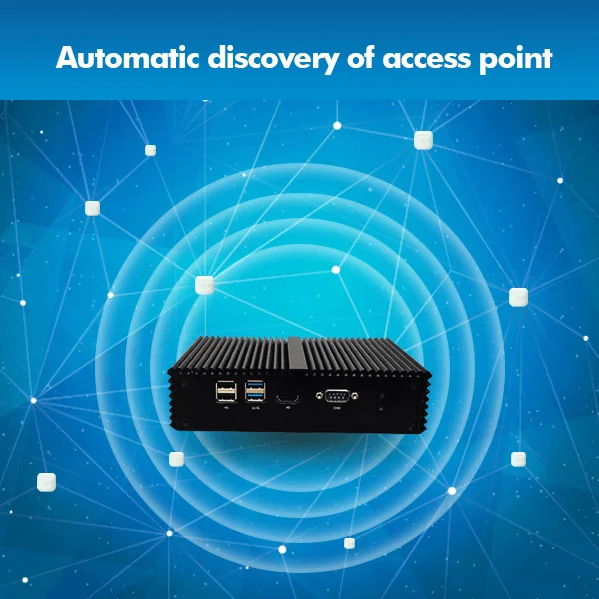

- Automatic discovery of access point
- Global full and partial search by Mac address, username, hostname, OS type, IP address, AP name; resulting logs pre-filtered by venue, WLAN, APs, clients
- Maps integration
Network Configuration
Effortless Network Expansion
Network Monitoring
- Traditional PSK (WPA/WPA2) ,802.1X with AAA support
- Ability to set bandwidth rate limit per client and per SSID
- click through, simple password, SMS, Voucher, Social networking login , captive portal
- Customizable inbuilt captive portal, External captive portal
- Inbuilt with user management , External
- Ability to force DHCP IP addressing
- MAC caching to allow repeat customers quick access to guest Wi-Fi
Security Framework
Connectivity Control
login options
Captive portal
Radius server
Network Configuration
- All traffic to and from the cloud is encrypted
- Only AP and client management traffic are sent to the cloud
- Local routing (broken out to local LAN and sent through existing firewall) and Centralized forwarding
- Client isolation
- Access control lists based on whitelisting and blacklisting
- Advertise only certain SSIDs within a venue
- L3/L4 access control for traffic policies
Data Transmision
Traffic Flow
Network Security
Network Control

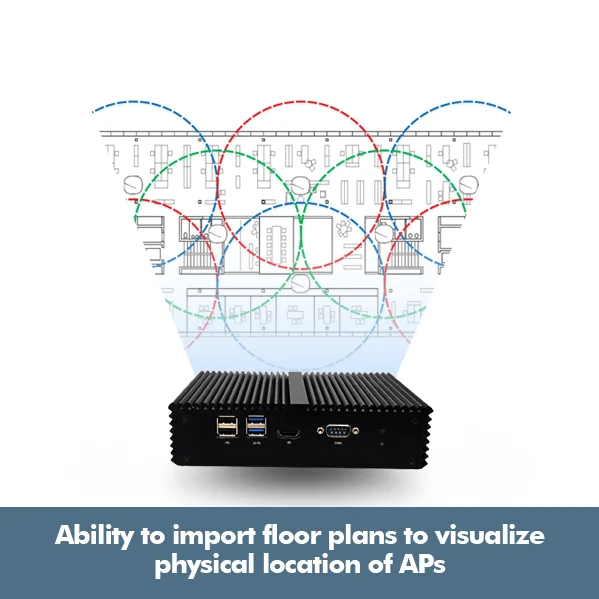

KC500
- IEEE 802.11ac Wave 2/ax support
- Dynamic channel and Power Assignment
- CAPWAP as RFC 5415/5416
WiFi Network Controller for small to medium businesses that supports upto 500 Access Points
Back
k110
WiFi Network Controller for mid-sized and large businesses that support up to 500 access points Now any business with limited resources can easily and quickly create a secure wireless Lan with Kenstel’s inexpensive KC500 that support up to 500 access points. KC500 was designed with robustness and customer’s ease of use in mind and are built to deliver high performance. Also, with security features like centralized forwarding with DTLS encryption, you never have to worry about the security of your network.
- Innovative hybrid technology enables management of multiple controllers from a central dashboard. Upto 500 Access points can be managed from a single interface.
- Zero touch deployment and configuration
- 802.11ax/ac wave 2 access points with proprietary antenna designs for enhanced coverage.
- Industry leading combination of price and performance. Reduce TCO by at least 30%.
- Flexibility to use as cloud or physical controller
- Zero recurring cost
- Intuitive statistics dashboard provides detailed insight into the network
- 3rd Party API Integration for analytics
- Controller redundancy feature for reduced downtime
- Management of a wide range of indoor and outdoor Kenstel APs, including the latest Wi-Fi 6 (802.11ax) as well as 802.11ac Wave 2 APs
- Radio resource management for dynamic control of TX power and channels
- Upto 8 SSID per radio
- Coverage hole detection and mitigation
- Airtime fairness
- Automatic load balancing (between APs and radios)
- Self-configuring, self-healing mesh networking
Standard
Wireless performance
Network Flexibility
Wireless Intelligence
- Ability to select RF policies, WLAN types (PSK, 802.1X, Captive Portal), guest access options, QoS and VLANs
- Flexibility to segment APs within a venue into different AP groups
- Channel and power control per venue, per AP group and per AP
- Bulk firmware upgrades

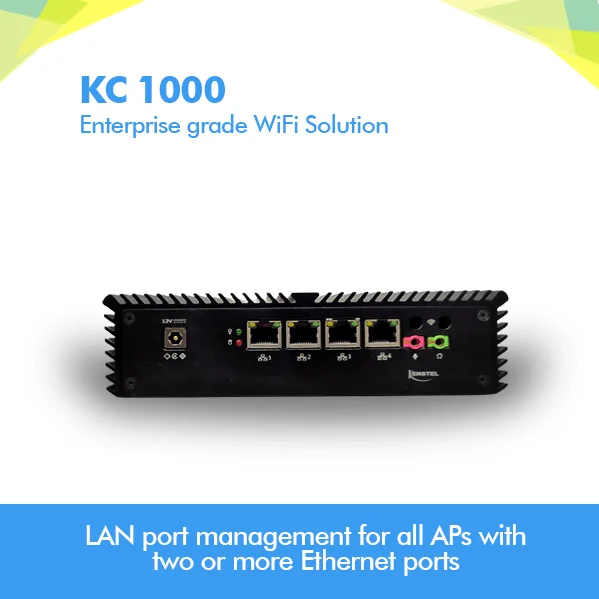

- LAN port management for all APs with two or more Ethernet ports
- Ability to import floor plans to visualize physical location of APs
- Maps integration
Network Configuration
Effortless Connectivity Control
Visualizing Network Deployment
- Traditional PSK (WPA/WPA2) ,802.1X with AAA support
- Ability to set bandwidth rate limit per client and per SSID
- 802.11k support to facilitate efficient roaming
- click through, simple password, SMS, Voucher, Social networking login , captive portal
- Customizable inbuilt captive portal, External captive portal
- Inbuilt with user management , External
- Ability to force DHCP IP addressing
- MAC caching to allow repeat customers quick access to guest Wi-Fi
- Fast BSS Transition (802.11r) to reduce handoff times between APs while providing security and QoS
Security Framework
Connectivity Control
login options
Captive portal
Radius server
Network Configuration
Seamless Mobility
- All traffic to and from the cloud is encrypted
- Only AP and client management traffic are sent to the cloud
- Local routing (broken out to local LAN and sent through existing firewall) and Centralized forwarding
- Client isolation
- Access control lists based on whitelisting and blacklisting
- Advertise only certain SSIDs within a venue
- L3/L4 access control for traffic policies
Data Transmision
Traffic Flow
Network Security
Network Control
KC1000
- Coverage hold detection and mitigation
- Private/Public cloud deployment
- Centralized forwarding with DTLS encryption
WiFi Network Controller for small to medium businesses that supports upto 1000 Access Points
Back
k110
WiFi Network controller for operators and large enterprises that support up to 1000 access points KC1000 was designed for large enterprises with high density environments and supports up to 5000 access points which can be easily expanded as KC5000 allows integration with multiple controllers. Easy to use and manage with a highly-intuitive Web user interface to make configuration and administration simpler. Kenstel delivers a bunch of features with KC5000 that are not found in any other local controllers.
- Innovative hybrid technology enables management of multiple controllers from a central dashboard. Upto 1000 Access points can be managed from a single interface.
- Zero touch deployment and configuration
- 802.11ax/ac wave 2 access points with proprietary antenna designs for enhanced coverage.
- Industry leading combination of price and performance. Reduce TCO by at least 30%.
- Flexibility to use as cloud or physical controller
- Zero recurring cost
- Intuitive statistics dashboard provides detailed insight into the network
- 3rd Party API Integration for analytics
- Controller redundancy feature for reduced downtime
- Management of a wide range of indoor and outdoor Kenstel APs, including the latest Wi-Fi 6 (802.11ax) as well as 802.11ac Wave 2 APs
- Radio resource management for dynamic control of TX power and channels
- Upto 8 SSID per radio
- Coverage hole detection and mitigation
- Airtime fairness
- Automatic load balancing (between APs and radios)
- Self-configuring, self-healing mesh networking
Standard
Wireless performance
Network Flexibility
Wireless Intelligence
- Ability to select RF policies, WLAN types (PSK, 802.1X, Captive Portal), guest access options, QoS and VLANs
- Flexibility to segment APs within a venue into different AP groups
- Channel and power control per venue, per AP group and per AP
- Bulk firmware upgrades
- Automatic discovery of access point
- Global full and partial search by Mac address, username, hostname, OS type, IP address, AP name; resulting logs pre-filtered by venue, WLAN, APs, clients
- Maps integration
Network Configuration
Effortless Network Expansion
Network Monitoring
- Traditional PSK (WPA/WPA2) ,802.1X with AAA support
- Ability to set bandwidth rate limit per client and per SSID
- click through, simple password, SMS, Voucher, Social networking login , captive portal
- Customizable inbuilt captive portal, External captive portal
- Inbuilt with user management , External
- Ability to force DHCP IP addressing
- MAC caching to allow repeat customers quick access to guest Wi-Fi
Security Framework
Connectivity Control
login options
Captive portal
Radius server
Network Configuration
- All traffic to and from the cloud is encrypted
- Only AP and client management traffic are sent to the cloud
- Local routing (broken out to local LAN and sent through existing firewall) and Centralized forwarding
- Client isolation
- Access control lists based on whitelisting and blacklisting
- Advertise only certain SSIDs within a venue
- L3/L4 access control for traffic policies
Data Transmision
Traffic Flow
Network Security
Network Control
KC2000
- Coverage hold detection and mitigation
- Private/Public cloud deployment
- Centralized forwarding with DTLS encryption
WiFi Network Controller for small to medium businesses that supports upto 2000 Access Points
Back
k110
WiFi Network controller for operators and large enterprises that support up to 2000 access points KC2000 was designed for large enterprises with high density environments and supports up to 5000 access points which can be easily expanded as KC5000 allows integration with multiple controllers. Easy to use and manage with a highly-intuitive Web user interface to make configuration and administration simpler. Kenstel delivers a bunch of features with KC5000 that are not found in any other local controllers.
- Innovative hybrid technology enables management of multiple controllers from a central dashboard. Upto 2000 Access points can be managed from a single interface.
- Zero touch deployment and configuration
- 802.11ax/ac wave 2 access points with proprietary antenna designs for enhanced coverage.
- Industry leading combination of price and performance. Reduce TCO by at least 30%.
- Flexibility to use as cloud or physical controller
- Zero recurring cost
- Intuitive statistics dashboard provides detailed insight into the network
- 3rd Party API Integration for analytics
- Controller redundancy feature for reduced downtime
- Management of a wide range of indoor and outdoor Kenstel APs, including the latest Wi-Fi 6 (802.11ax) as well as 802.11ac Wave 2 APs
- Radio resource management for dynamic control of TX power and channels
- Upto 8 SSID per radio
- Coverage hole detection and mitigation
- Airtime fairness
- Automatic load balancing (between APs and radios)
- Self-configuring, self-healing mesh networking
Standard
Wireless performance
Network Flexibility
Wireless Intelligence
- Ability to select RF policies, WLAN types (PSK, 802.1X, Captive Portal), guest access options, QoS and VLANs
- Flexibility to segment APs within a venue into different AP groups
- Channel and power control per venue, per AP group and per AP
- Bulk firmware upgrades
- Automatic discovery of access point
- Global full and partial search by Mac address, username, hostname, OS type, IP address, AP name; resulting logs pre-filtered by venue, WLAN, APs, clients
- Maps integration

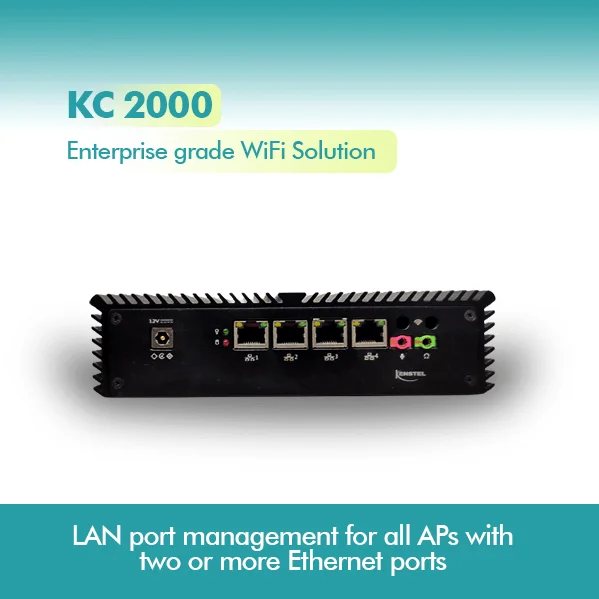

- LAN port management for all APs with two or more Ethernet ports
- Ability to import floor plans to visualize physical location of APs
Network Configuration
Effortless Network Expansion
Network Monitoring
Connectivity Control
Visualizing Network Deployment
- Traditional PSK (WPA/WPA2) ,802.1X with AAA support
- Ability to set bandwidth rate limit per client and per SSID
- 802.11k support to facilitate efficient roaming
- click through, simple password, SMS, Voucher, Social networking login , captive portal
- Customizable inbuilt captive portal, External captive portal
- Inbuilt with user management , External
- Ability to force DHCP IP addressing
- MAC caching to allow repeat customers quick access to guest Wi-Fi
- Fast BSS Transition (802.11r) to reduce handoff times between APs while providing security and QoS
Security Framework
Connectivity Control
login options
Captive portal
Radius server
Network Configuration
Seamless Mobility
- All traffic to and from the cloud is encrypted
- Only AP and client management traffic are sent to the cloud
- Local routing (broken out to local LAN and sent through existing firewall) and Centralized forwarding
- Client isolation
- Access control lists based on whitelisting and blacklisting
- Advertise only certain SSIDs within a venue
- L3/L4 access control for traffic policies
Data Transmision
Traffic Flow
Network Security
Network Control
